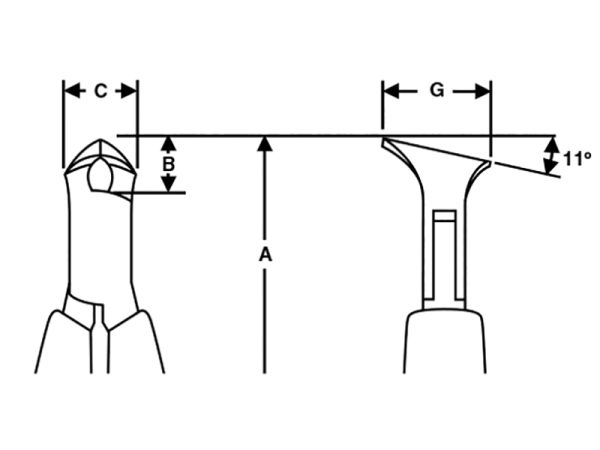

Length (A): 108mm (4.25 in).
Blade length (B): 8mm (0.31 in).
Head width (C): 10.5mm (0.41 in).
Head depth (G): 15mm (0.59 in).
Cutting capacity: 0.35-1.25mm.
Head type: Double angled.
Cutting edge: Micro-bevel.

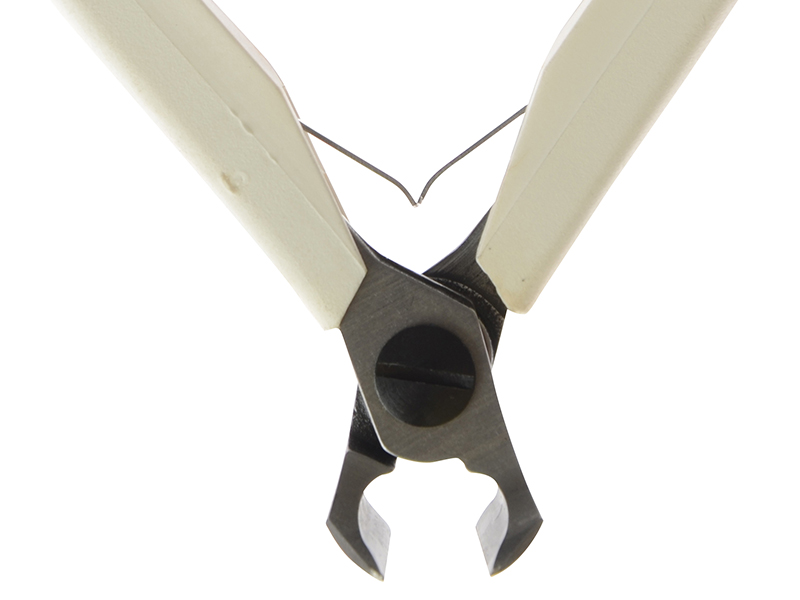

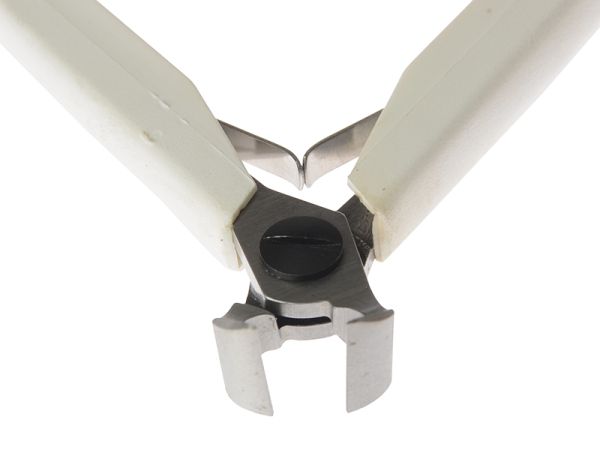

Angled heads, also known as oblique style, are set at an angle to the main body of the cutter. This means that the cutter can reach between parts and areas which are difficult to access.

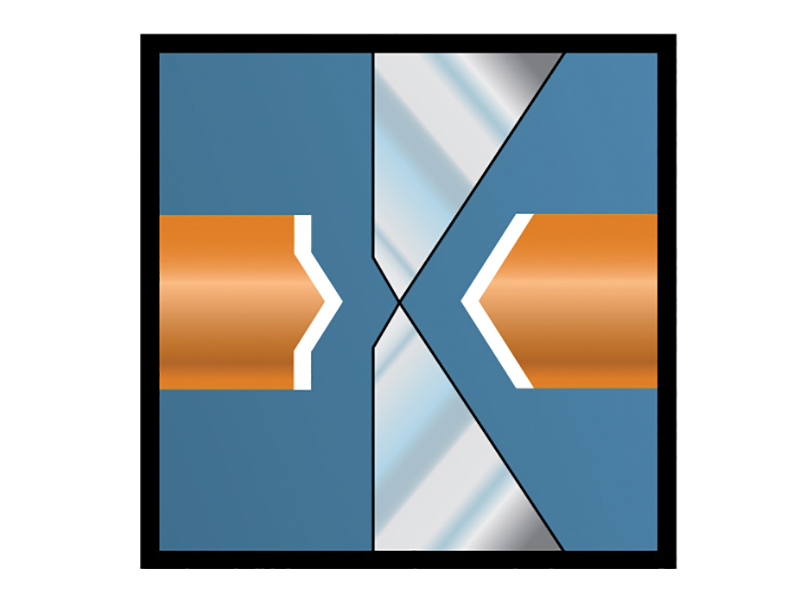

The Micro-Bevel cut is designed to meet the requirements of the electronic assembly industry. Leads are ‘pinched’, allowing less altitude and a smaller overall surface area. Because of its design, it has a wide cutting range and variety of uses.
Product Features
