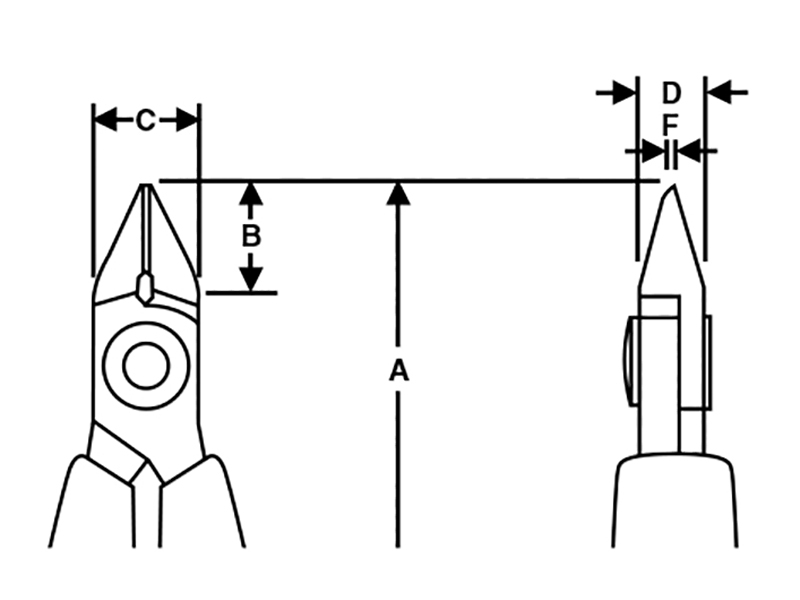

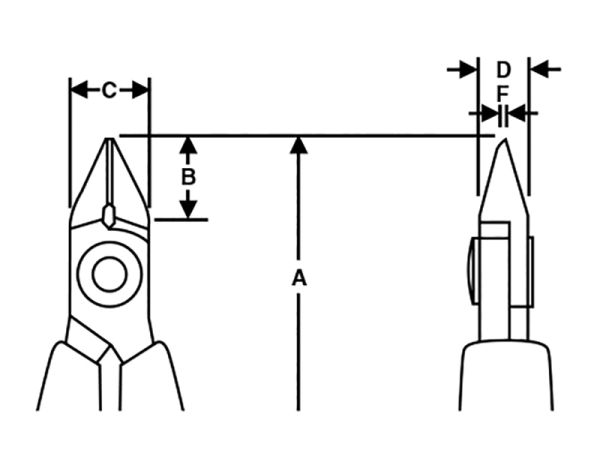

Length (A): 109mm (4.29 in).
Blade length (B): 9mm (0.35 in).
Head width (C): 9mm (0.35 in).
Head depth (D): 6mm (0.24 in).
Tip width: (F): 1.0mm (0.04 in).
Cutting capacity: 0.2-1.25mm.
Head type: Tapered
Cutting edge: Micro-bevel.

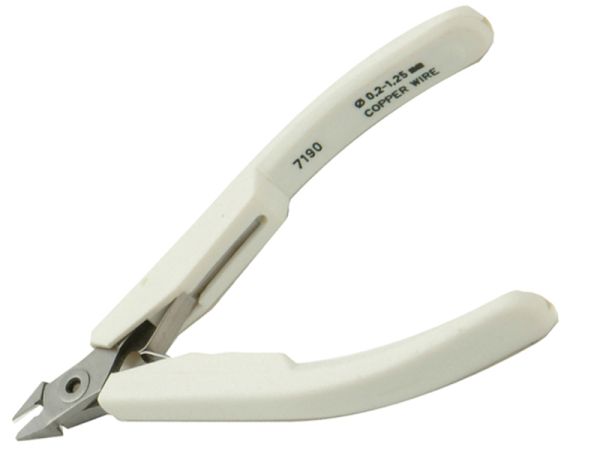

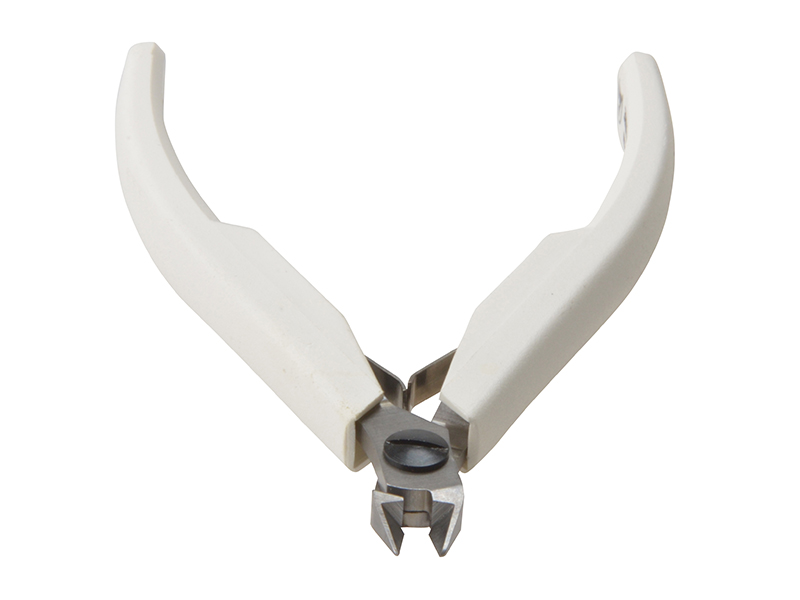

The tapered head is the smallest of the standard cutting heads available. Not only does it taper on both sides, but also the underside is cut away, allowing the operater to gain access into some difficult areas.

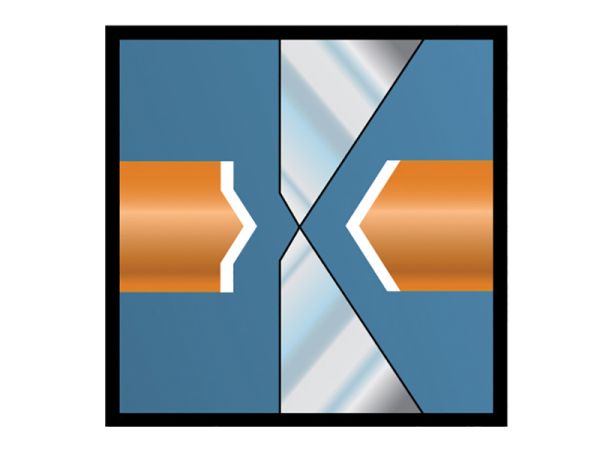

The Micro-Bevel cut is designed to meet the requirements of the electronic assembly industry. Leads are ‘pinched’, allowing less altitude and a smaller overall surface area. Because of its design, it has a wide cutting range and variety of uses.
Product Features
If you require any Safety Data Sheets or information regarding the COSSH Ref then please contact us at sales@cts-limited.com
