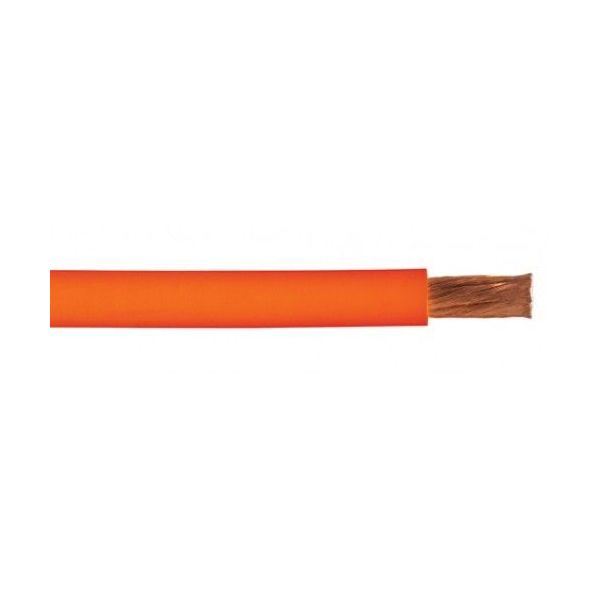

Orange Welding Cables
Available in lengths of 10meters and 10 metre increments
Application Range
- For use as voltage leads/trailing cables
- Primarily for connection of metal arc welding
- Earthing or return leads for electrolytic plating process plants
Design
- Conductor: Flexible stranded tin coated to Class 6 EN 60228
- Separator: Paper tape between the conductor and insulation
- Insulation: Ethylene-propylene rubber (EPR) type GP4 acc. to BS 7655
- Sheath: HOFR (Heat and Oil resistant, flame retardant) acc. to BE EN 50363 - Orange
Product features
- Voltage rating: 100V (450V for non-welding applications if cable is suitably protected from mechanical damage) Temperature Rating: -20°C to +85°C
- Minimum Bend Radius: 6 x overall diameter
- Conforms to 0361TQ BS 638 Part 4
- OTHER TYPES AND MAKES AVAILABLE CONTACT SALES FOR DETAILS PRICE- ALL Associated -welding -Parts -
If you require any Safety Data Sheets or information regarding the COSSH Ref then please contact us at sales@cts-limited.com
