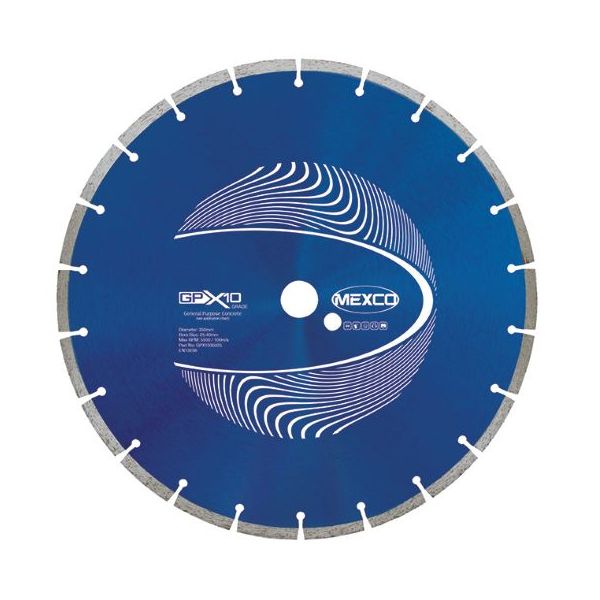

MEXCO GPX10 GENERAL PURPOSE
The GPX10 offers a cost effective solution for the user who requires a diamond blade that can cope with the cutting of the most widely used non-abrasive building materials .
KEY FEATURES
● 10mm Segment Height
● Heavy Duty Steel Centre
● Price Point Product
● Fast Cutting
PRODUCT OVERVIEW
Grade: X10
Segment Height: 10mm Segment Type: Segmented
Segment Attachment: Sintered Gullet Type: Narrow Keyhole
Dry/Wet: Wet or Dry Use
Recommended for: Angle Grinder, Disc Cutter, Bench Saw & Floor Saw
Code Diameter Segment Width Bore Size / s
(mm) (in) (mm) (mm)
GPX1010516 105 4 2 16
GPX1011522 115 4.5 2 22.23
GPX1012522 125 5 2.2 22.23
GPX1018022 180 7 2.4 22.23
GPX1018025 180 7 2.4 25.4
GPX1023022 230 9 2.8 22.23
GPX1030020 300 12 3.2 20
GPX1030022 300 12 3.2 22.23
GPX1035025 350 14 3.2 25.4
If you require any Safety Data Sheets or information regarding the COSSH Ref then please contact us at sales@cts-limited.com
