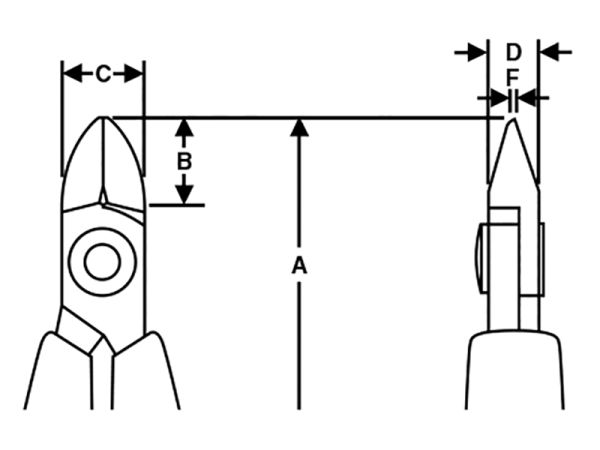

Length (A): 110 mm (4.3/8 in).
Blade length (B): 10mm (0.39 in).
Head width (C): 10mm (0.39 in).
Head depth (D): 6mm (0.24 in).
Tip width: (F): 0.8mm (0.03 in).
Cutting Capacity: 0.1-1.0mm.
Cutting edge: Ultra flush.
The Ultra flush cutter virtually eliminates the pinch that other cutters make. The cutters configure two flat planes, with a barely discernible line separating each of these planar surfaces. They are perfect for use in close tolerance electronic and medical device assembly, where concerns about final lead-end configuration and mechanical shock transmission are a top priority.
Product Features
Brand:
Lindstrom
EAN:
7314150051007
SKU:
8142
If you require any Safety Data Sheets or information regarding the COSSH Ref then please contact us at sales@cts-limited.com
